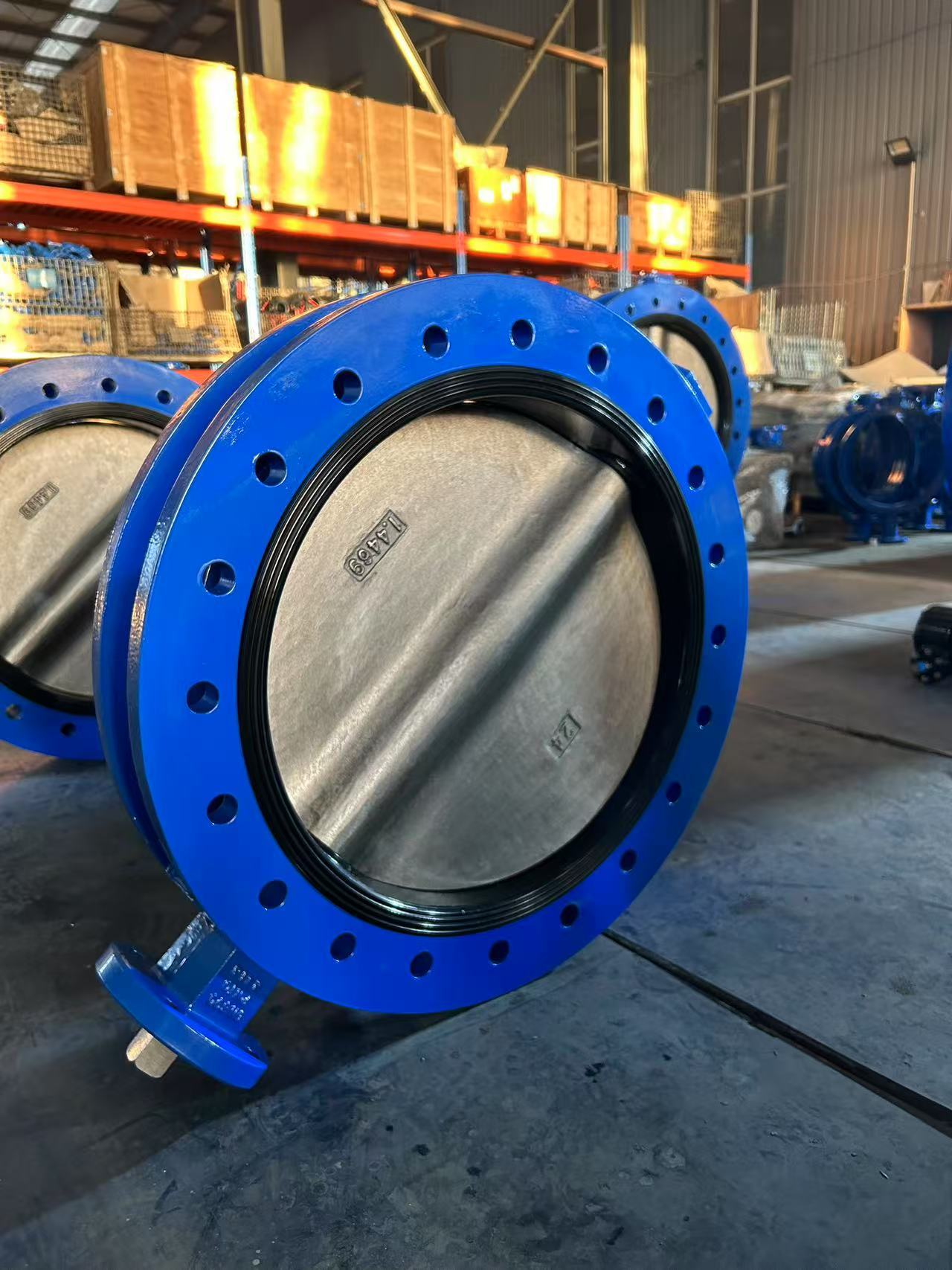

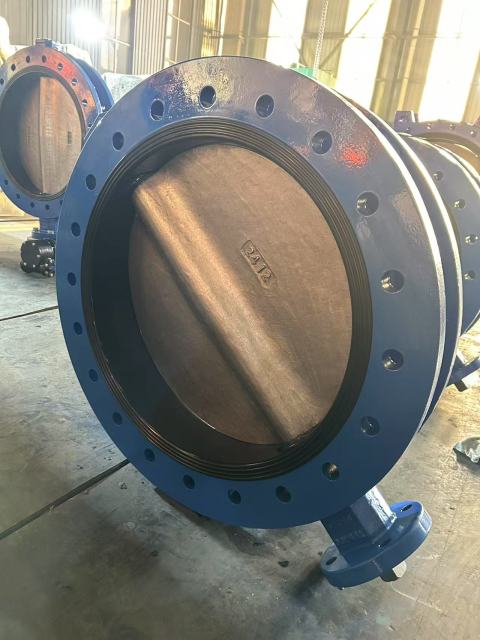

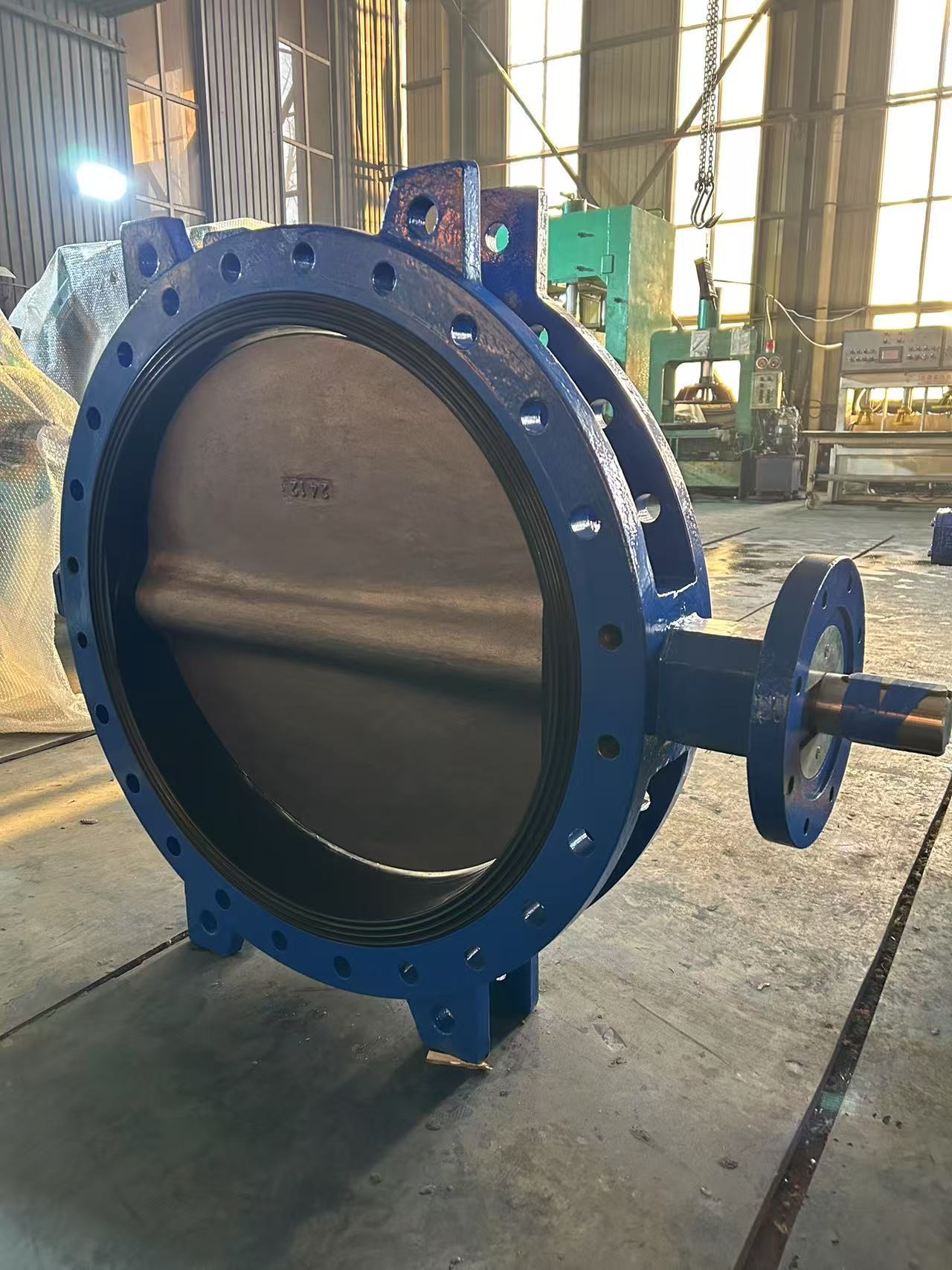

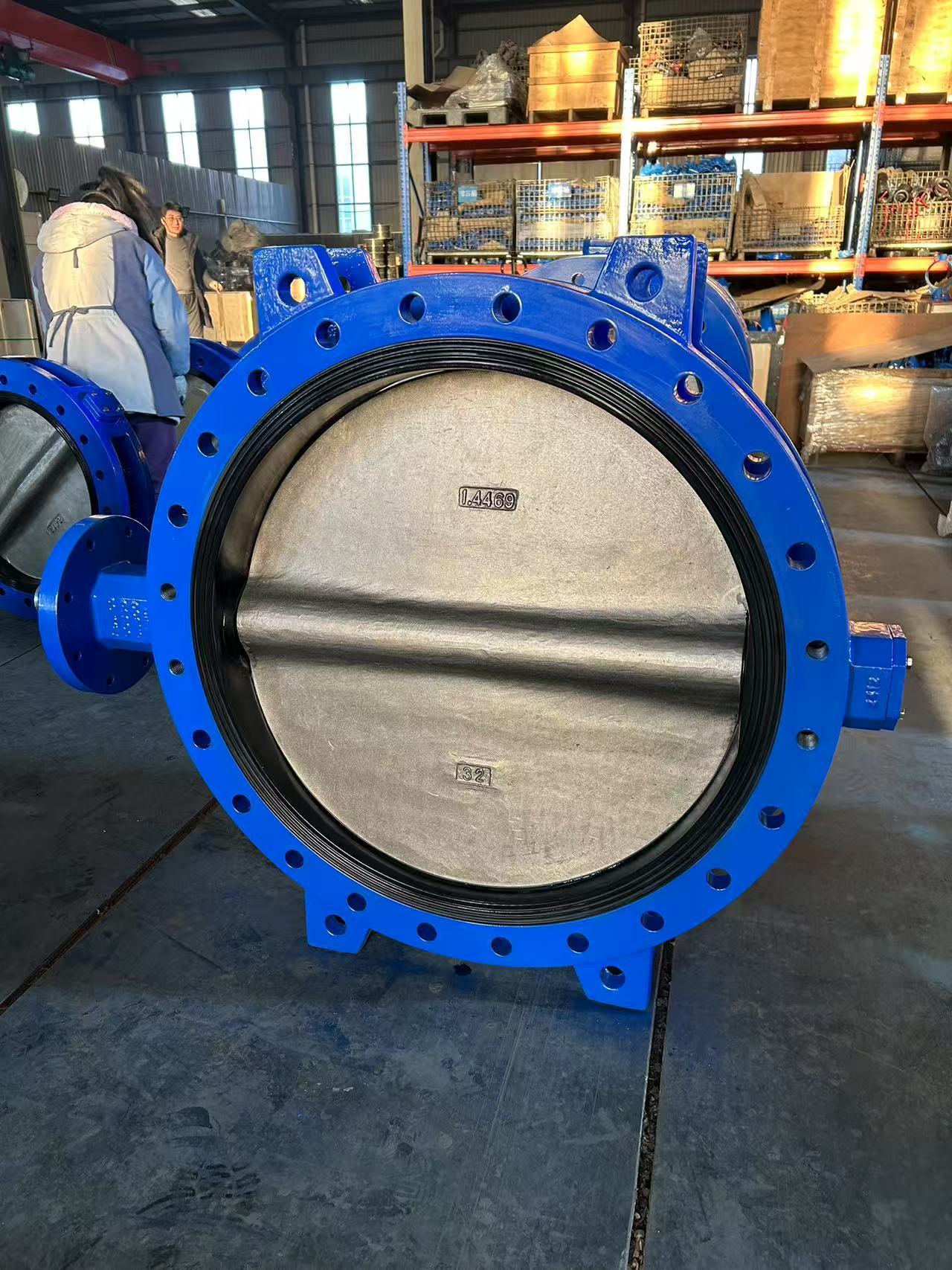

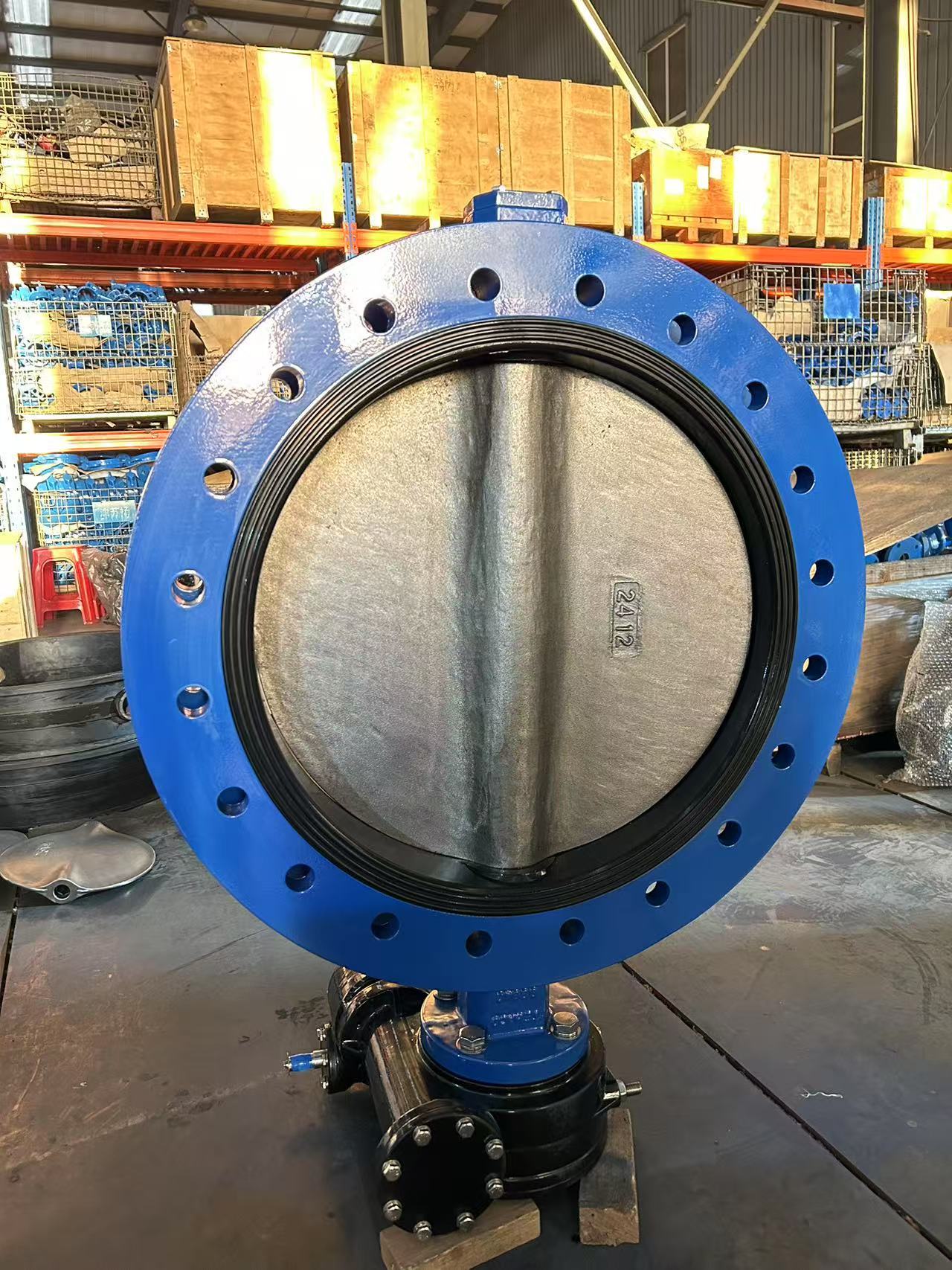

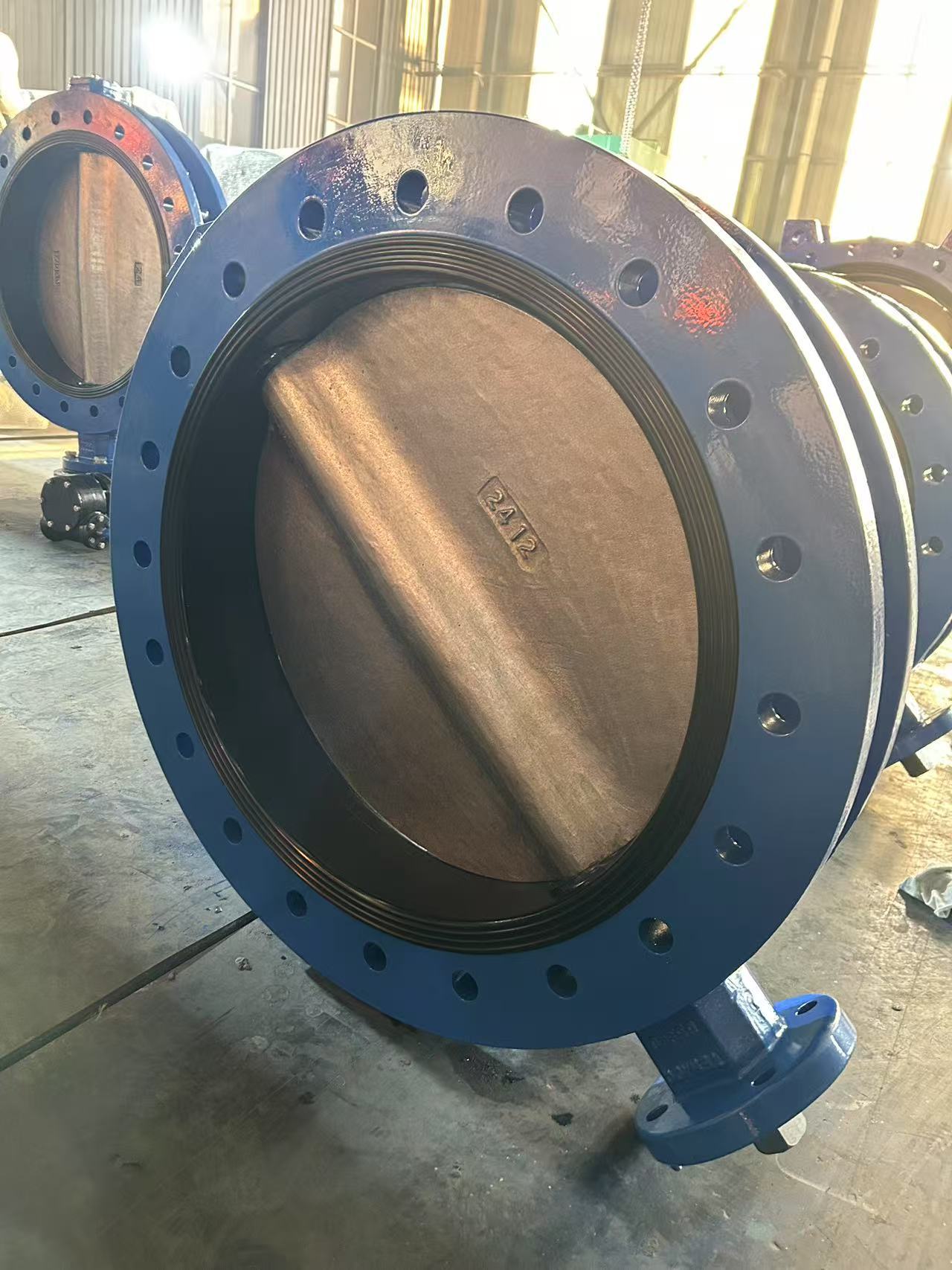

1.4469 Solid Disc Soft Seat U-type Butterfly Valve

 For the U-Type Butterfly Valve,The flange holes will be drilled according to international flange standards, and the valve will be equipped with a non-corrosive bushing and a self-adjusting stem seal. Flange locating holes will be provided on the U-section body to ensure quick and accurate alignment during installation
Size
DN50-DN1200
Flange
PN6/PN10/PN16/150LB/10K/Table D /Table E
Design
EN593/API609/BS5155/ISO5211/EN1092
Mounting Flange
ISO 5211
Testing Standard
API598 ISO5208 EN12266-1
CONTACT US
  • 1.4469 Solid Disc Soft Seat U-type Butterfly Valve,1.4469 Solid Disc Soft Seat U-type Butterfly Valve,Butterfly Valve Manufacturer in China
  • 1.4469 Solid Disc Soft Seat U-type Butterfly Valve,1.4469 Solid Disc Soft Seat U-type Butterfly Valve,Butterfly Valve Manufacturer in China
  • 1.4469 Solid Disc Soft Seat U-type Butterfly Valve,1.4469 Solid Disc Soft Seat U-type Butterfly Valve,Butterfly Valve Manufacturer in China
  • 1.4469 Solid Disc Soft Seat U-type Butterfly Valve,1.4469 Solid Disc Soft Seat U-type Butterfly Valve,Butterfly Valve Manufacturer in China
  • 1.4469 Solid Disc Soft Seat U-type Butterfly Valve,1.4469 Solid Disc Soft Seat U-type Butterfly Valve,Butterfly Valve Manufacturer in China

  • Description

  • Quality Assurance

The valve body shall adopt a one-piece U-section design and a concentric disc and seat configuration to accommodate  2" - 56" of piping insulation, have flange holes drilled in accordance with international flange standards, and be equipped with a non-corrosive bushing and self-adjusting stem seal. Flange locating holes shall be provided on U-section bodies to facilitate quick and precise alignment during valve installation. The edge and hub of the valve disc on metal discs shall be spherically machined and hand polished for minimum torque and maximum sealing capability. The disc-to-stem connection shall be an internal square design without any possible leak paths in the disc-to-stem connection. External disc-to-stem connections such as screws or pins are prohibited. The valve seat shall have a tongue-and-groove design. The seat shall completely encapsulate the body, isolating the body from the line media, and no flange gaskets shall be necessary. The U-section valve shall be rated for bubble-tight shut-off in bidirectional service at 16 Bar for sizes 2" - 12" (50mm - 300mm) and at 10 Bar for sizes 14" - 56" (350mm - 1400mm). The valve shall be tested for tight shut-off at 110% of the rated pressure.

 Product Fearues

 1.  Compact and lightweight design facilitates easy installation and maintenance.
2. Can be mounted in any required location; features a simple, compact construction with quick 90-degree on-off operation.
3. Operating torque is minimized for enhanced energy efficiency.
4. Provides bubble-tight sealing with no leakage during pressure testing.
5. A wide range of materials available, suitable for various media applications.
6. Long service life, proven to withstand tens of thousands of opening and closing cycles without failure.
7. Flow curve approaches a straight line, demonstrating excellent regulation performance."

 Working/Testing Pressure


        Size                   DN          40mm-300mm        350mm-1200mm
                 Inch            1-1/2''-12''              14''-24''
                                   Working                 16bar               10bar
          Testing              Shell                 24bar                15bar
             Seal                 17.6bar                 11bar

 Working Temperature
     Seat Material             EPDM             NBR          FKM            PTFE
     Temperature      -10℃ to 120℃       -10℃ to 80℃      -15℃ to 200℃     -25℃ to 180℃

Material Specification
           Part          Material
          Body        Cast Iron  Ductile Iron  WCB  CF8 CF8M  CF3M Duplex Steel  Al-Bronze
           Disc       Ductile Iron   CF8 CF8M CF3M   Duplex Steel   Al-Bronze   Harlar Coated
           Shaft                          SS410  SS416  SS420  SS431  SS316 17-4PH
           Seat                                              EPDM NBR PTFE FKM  Silicone
       Bushing                                         FRP   PTFE   Bronze
           Lever                       Malleable Iron         Carbon Steel    Aluminum    SS316
        Gear Box                                    Ductile Iron         Aluminum    SS316


 Corrosion Protection

Epoxy Resin Powder Spray,The minimum thickness is not less than 300 microns

 Disc Options

  Through shaft with Pin
  Pinless disc
  Slim disc concentric design(DN50-DN350)

 Seat Options

Cartridge rubber seat
Tongue and Groove/Replaceable Seat
            NOTE:
           *The shaf end can be doubl D and key connecton. From DN700 and above, the shaf end is double key type.
          *The flange connecton of the above table can be DIN2501 PN16, ASME B16.47-A 125/150LB, BS4504 PN10/PN16, JIS 10K,Table D ,Table E


Butterfly Valve Manufacturing Process
