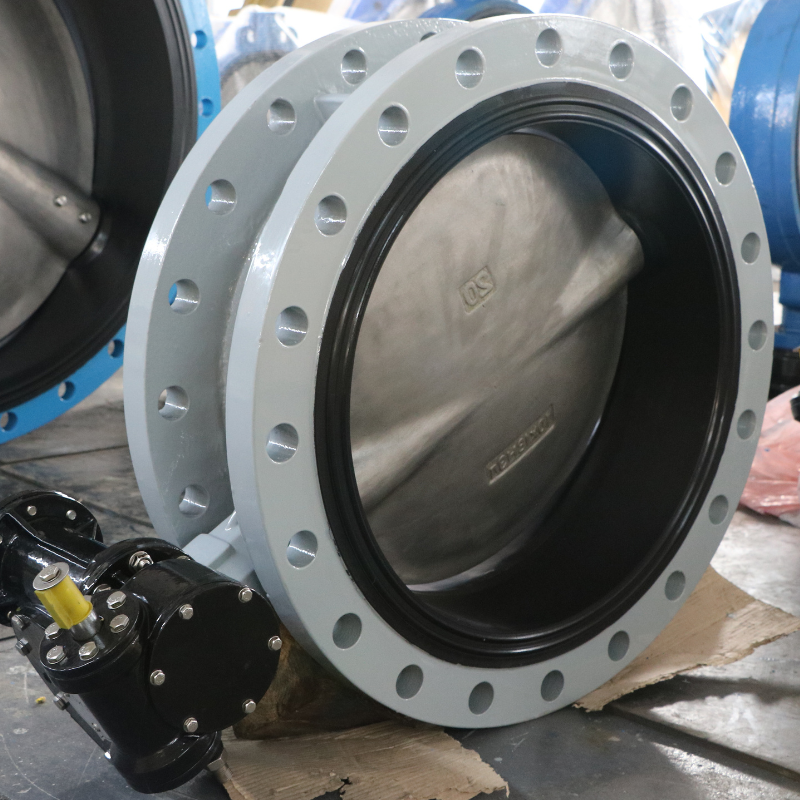

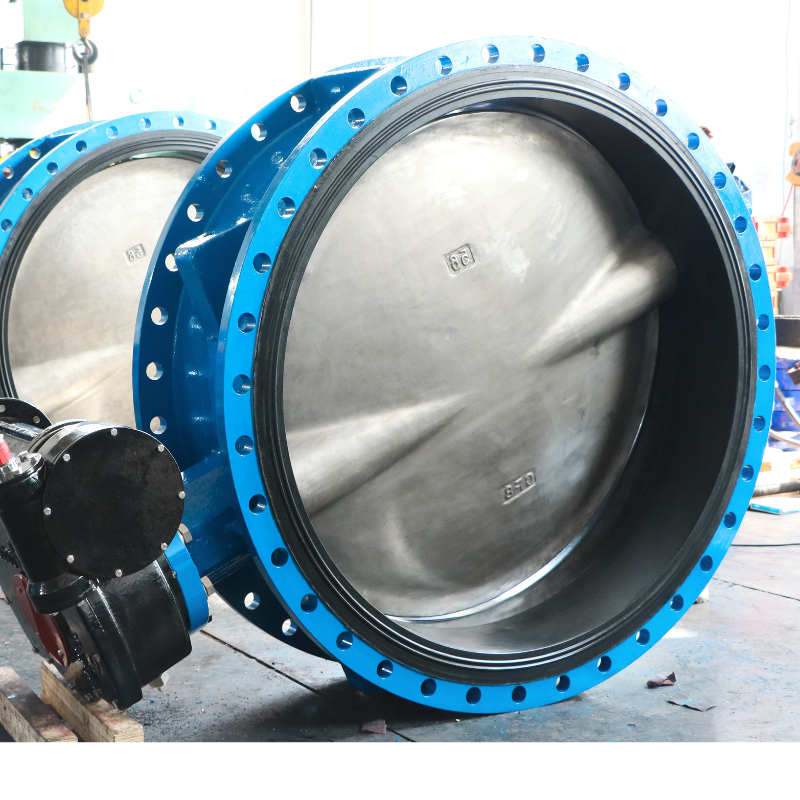

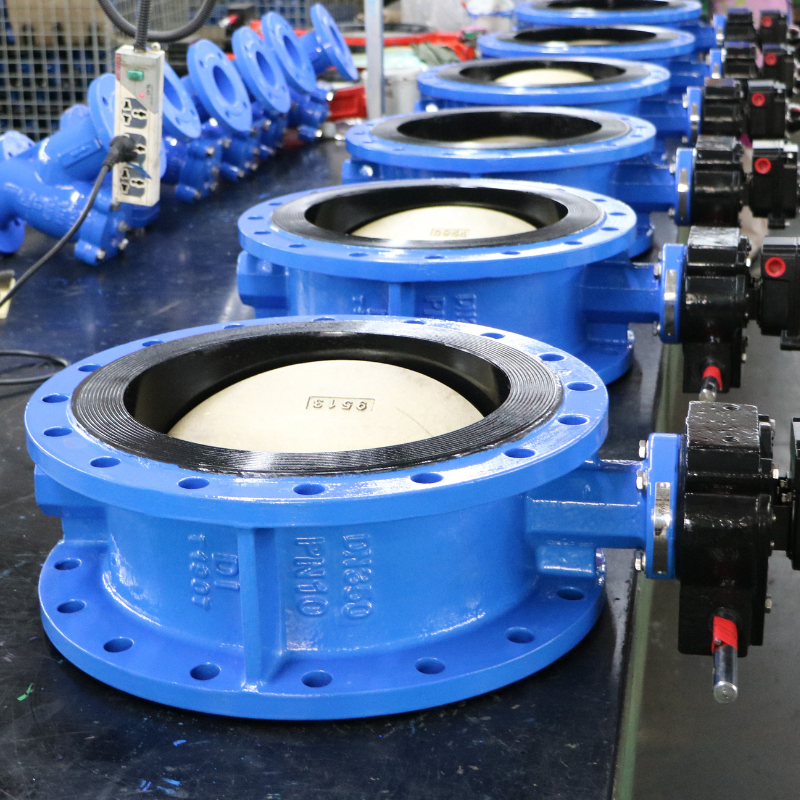

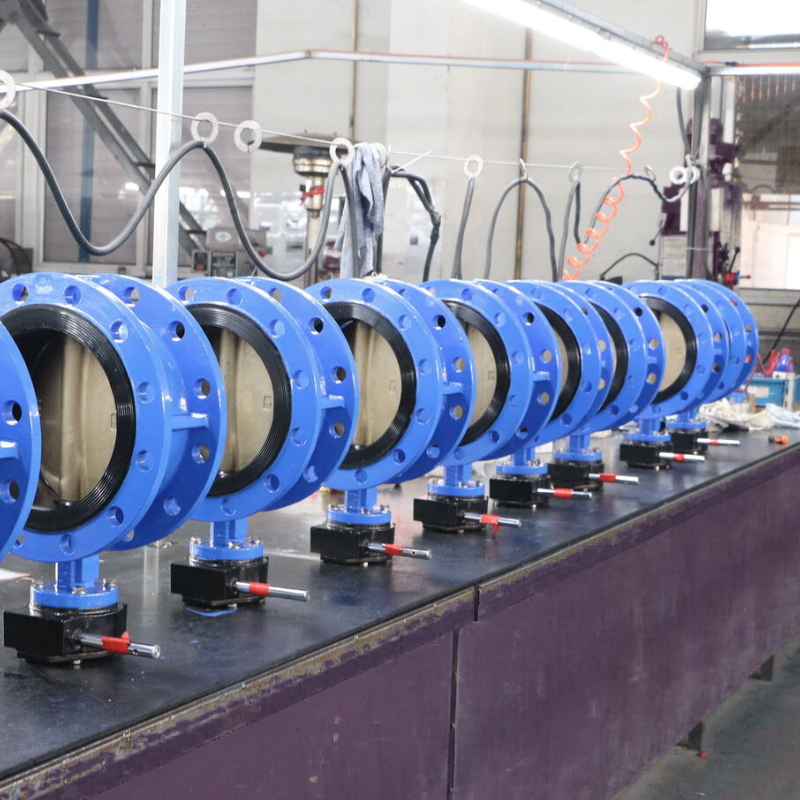

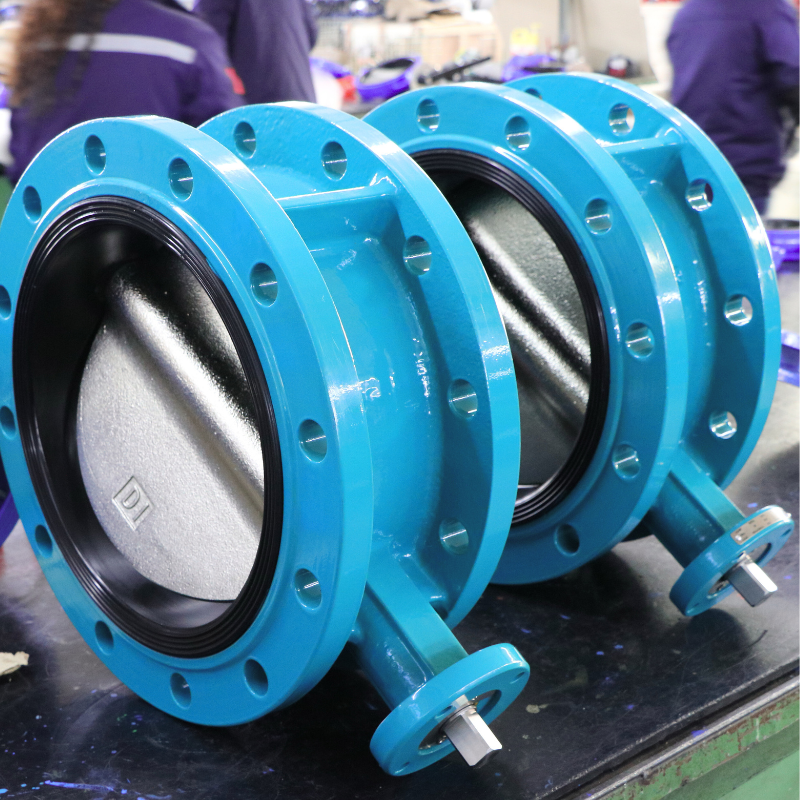

This resilient seated butterfly valve features a double flange design, making it suitable for dead-end service. The valve series boasts several design advantages, including high Cv ratings, minimal exposure of parts to the line media, greater reliability, and a proven long service life. A key benefit of this valve is its international compatibility, as the same valve can be used with various global flange standards, such as ASME Class 125/150, BS 10 Tables D and E, BS 4504 PN 10/16, DIN PN 10/16, AS 2129, and JIS 10. Additionally, the valves are designed to meet ISO 5752-Table 2 (EN 558 Table 13) face-to-face dimensions and ISO 5211 actuator mounting flange standards.
Double flanged Butterfly Valves constitute an indispensable element in numerous industrial and commercial systems, meticulously crafted to modulate the fluid flow within pipes. These highly versatile valves are gaining escalating popularity owing to their well-balanced combination of durability, reliability, and cost-efficiency when juxtaposed with more conventional ball valves.
Multiple applications: These valves are applicable across a broad spectrum of scenarios, rendering them a preferred choice for industries like water treatment, oil and gas, and chemical processing.
Actuator Options: These valves can be outfitted with either pneumatic or electric actuators, offering flexibility to satisfy a diverse range of operational requirements. The selection of the actuator influences the control mode of the valve - pneumatic actuators for swifter operation and electric actuators for more precise control.
Accessory compatibility: To augment functionality, double-flanged butterfly valves can be furnished with a multiplicity of accessories. Options encompass switch boxes for operational feedback, solenoids for automatic control, air filter regulators for pressure maintenance, and 4-20mA electro-pneumatic positioners for fine-tuning the valve position.
Quality Assurance: Every valve is comprehensively assembled and stringently tested to guarantee optimal performance and dependability, providing you with a sense of reassurance in critical operations.
APPLICATIONS
Double flanged butterfly valves are robust and adaptable and are extensively employed in a variety of applications. They are ideally tailored for:
Water and wastewater management: proficiently regulating the flow in municipal and industrial water supply systems.
Petrochemical processes: governing the transportation and processing of hydrocarbons and other chemicals.
HVAC systems: Regulating the air and fluid flow in heating, ventilation, and air conditioning systems to enhance energy efficiency.
Mining operations: handling abrasive materials and controlling slurries during the extraction process.
Product Fearues
1. Compact and lightweight design facilitates easy installation and maintenance. 2. Can be mounted in any required location; features a simple, compact construction with quick 90-degree on-off operation. 3. Operating torque is minimized for enhanced energy efficiency. 4. Provides bubble-tight sealing with no leakage during pressure testing. 5. A wide range of materials available, suitable for various media applications. 6. Long service life, proven to withstand tens of thousands of opening and closing cycles without failure. 7. Flow curve approaches a straight line, demonstrating excellent regulation performance." Working/Testing Pressure
Size
DN
40mm-300mm
350mm-2000mm
Inch
1-1/2''-12''
14''-80''
Working
16bar
10bar
Testing
Shell
24bar
15bar
Seal
17.6bar
11bar
Working Temperature
Seat Material
EPDM
NBR
FKM
PTFE
Temperature
-10℃ to 120℃
-10℃ to 80℃
-15℃ to 200℃
-25℃ to 180℃
Material Specification
Part
Material
Body
Cast Iron Ductile Iron WCB CF8 CF8M CF3M Duplex Steel Al-Bronze
Disc
Ductile Iron CF8 CF8M CF3M Duplex Steel Al-Bronze Harlar Coated
Shaft
SS410 SS416 SS420 SS431 SS316 17-4PH
Seat
EPDM NBR PTFE FKM Silicone
Bushing
FRP PTFE Bronze
Lever
Malleable Iron Carbon Steel Aluminum SS316
Gear Box
Ductile Iron Aluminum SS316
Corrosion Protection
Epoxy Resin Powder Spray,The minimum thickness is not less than 300 microns
Disc Options
Through shaft with Pin Pinless disc Slim disc concentric design(DN50-DN350)
Seat Options
Vulcanized seat Tongue and Groove/Replaceable Seat
NOTE:
*The shaf end can be doubl D and key connecton. From DN700 and above, the shaf end is double key type.
*The flange connecton of the above table can be DIN2501 PN16, ASME B16.47-A 125/150LB, BS4504 PN10/PN16, JIS 10K,Table D ,Table E
