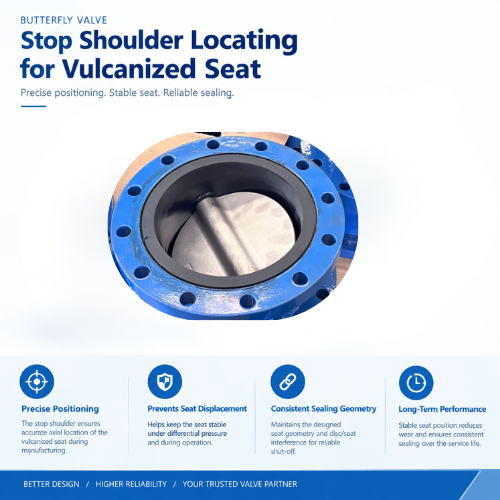

A vulcanized seat butterfly valve has its resilient rubber seat cured and bonded directly to the valve body. For the seat to seal correctly over thousands of cycles, it must stay in exactly the right position during molding, assembly, and operation. The stop shoulder, also called a locating shoulder or seat stop, is the machined shoulder inside the body that positions the vulcanized seat, controls how much the seat compresses, and protects it from being over-loaded by the disc.
This article explains what stop shoulder locating is, how it works, why it matters for a vulcanized seat, and what engineers should check when specifying or inspecting a resilient-seated butterfly valve.
In a butterfly valve, a stop shoulder is a raised or recessed step machined into the body seating area. In a resilient-seated valve, this shoulder forms the boundary of the seat cavity. The vulcanized rubber is molded against it, so the shoulder becomes a physical locator for the seat.
The shoulder typically sits behind the sealing surface and around the bore. It works together with the dovetail groove, undercut, or other mechanical anchoring features in the body. The dovetail anchors the rubber to prevent delamination, while the shoulder positions the rubber at the correct height and provides a controlled stop for the disc.
Unlike a cold-fitted, drop-in liner that is simply compressed into the body, a vulcanized seat is created by curing rubber against the body under heat and pressure. The final seat position is determined by the body cavity geometry. If that geometry is not precise, the seat may be too high, too low, or uneven around the bore.
A seat that is positioned too high creates excessive friction and operating torque. A seat that is too low may not seal at low differential pressure. A seat that is uneven can wear faster on one side and fail early. The stop shoulder gives the rubber a consistent reference surface, so the seat is located accurately relative to the disc centerline and the shaft axis.
In the closed position, the disc edge presses against the vulcanized seat to create a seal. The rubber must compress enough to seal, but not so much that it is damaged or that the valve torque becomes excessive. The stop shoulder controls this relationship.
When the disc closes, it compresses the resilient seat until the disc reaches the intended closed position. The shoulder behind the seat acts as a positive stop for the disc edge, limiting over-travel. At the same time, the seat material between the disc and the shoulder is compressed in a controlled way. This produces a predictable sealing load and a consistent closed position every cycle.
The shaft centerline is also located relative to the same body bore. If the shoulder and shaft bores are machined on the same setup, the disc remains centered in the seat, which reduces side loading, seat wear, and operating torque.
Several design and manufacturing details determine how well a stop shoulder locates a vulcanized seat:
A correctly designed stop shoulder improves several aspects of valve performance:
Use this checklist when reviewing a vulcanized seat butterfly valve:
Yes. In many butterfly valve drawings, the locating shoulder is called a seat stop, rubber stop, or seat shoulder. The function is the same: it positions the vulcanized seat and limits disc travel into the rubber.
They work together but perform different jobs. The dovetail groove mechanically anchors the rubber to the body and prevents it from being pulled away. The stop shoulder provides a locating reference and a back support that controls seat compression and resists extrusion.
A cold-fitted or drop-in seat may use a locating shoulder, but it is not vulcanized to the body. That type of seat relies mainly on mechanical compression and clamping to stay in place. A vulcanized seat is bonded and anchored, so the shoulder works as a positive locator rather than the only retention mechanism.
If the shoulder height is too low, the disc may over-compress the seat and increase friction. If it is too high, the seat may not seal correctly. The correct shoulder height controls the maximum compression of the rubber, which helps keep breakaway and running torque within the design range.
It is common in waterworks and industrial resilient-seated butterfly valves, especially those built for long service life and reliable bubble-tight shut-off. The design is also important in vacuum and large-diameter applications where a cold-fitted liner is more likely to collapse or pull away from the body. For waterworks examples, see the AWWA C504 rubber-seated butterfly valve and our double flange butterfly valve collection.
Contact LAUX Valve if you need to confirm the locating and seat retention design for a specific valve size or application.
