What is a PTFE Lined Butterfly Valve? Complete Guide to Design, Materials, Applications & Selection

What Makes a Butterfly Valve "PTFE Lined"?

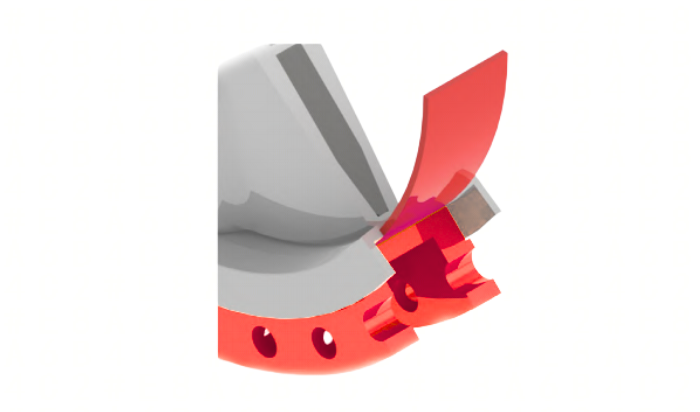

A PTFE lined butterfly valve is distinguished from a standard butterfly valve by the continuous fluoropolymer barrier that separates the process fluid from the metal valve components. The key defining elements are:

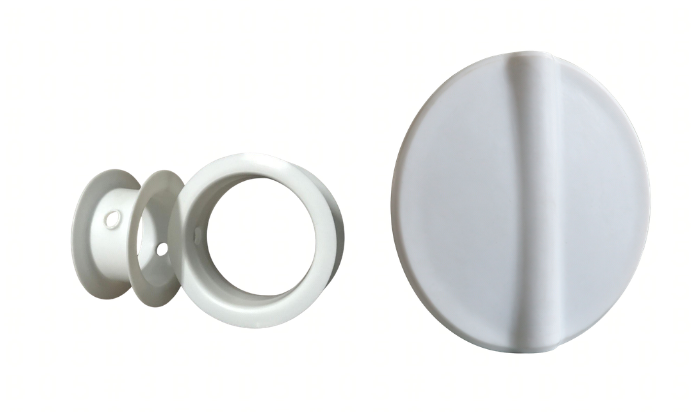

1. PTFE Lining Disc

The disc is metal (usually ductile iron or stainless steel) encapsulated by a continuous layer of PTFE or PFA. This is not a spray coating — it is a molded, full-coverage encapsulation formed through the same transfer molding or sintering process as the body lining. The encapsulation covers:

• The disc face — the primary sealing surface
• The disc edge — the point of contact with the seat
• The disc hub — the area around the stem penetration
• The stem bore — preventing process fluid from contacting the stem metal

2. PTFE Seat / Seal

The sealing mechanism in a PTFE lined butterfly valve differs from rubber-seated valves:

• PTFE-to-PTFE seal: The PTFE encapsulated disc edge seals directly against the PTFE body liner which forms the valve seat. This creates a pure fluoropolymer sealing interface — no dissimilar materials.
• Energized PTFE seat: Some designs incorporate an elastomeric backing (EPDM or Viton O-ring) behind the PTFE seat to provide resilient energy and improve low-pressure sealing performance while the PTFE provides chemical resistance at the wetted surface.

PTFE vs. PFA vs. FEP — Which Fluoropolymer?

Not all fluoropolymer linings are the same. The three primary materials used in butterfly valve linings have distinct properties that affect application suitability:

PTFE Lined vs. Rubber Seated Butterfly Valve

Body Designs: Split Body vs. One-Piece

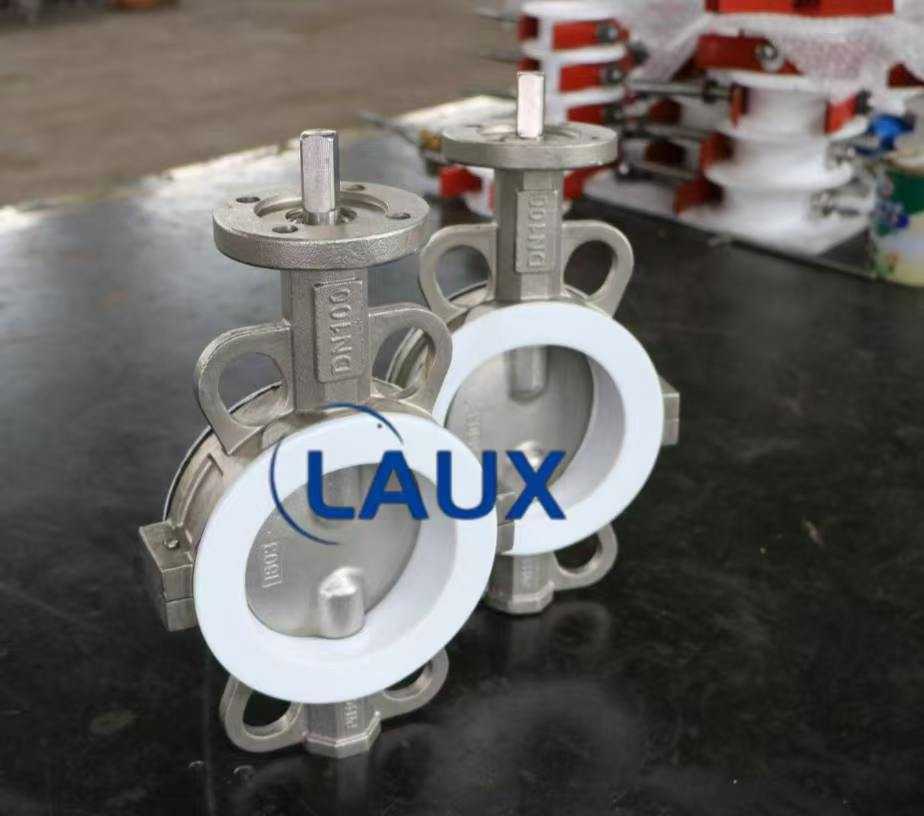

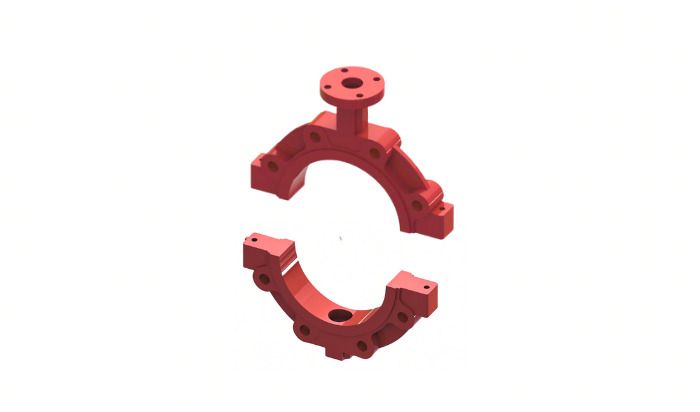

Split Body Design

The most common design for PTFE lined butterfly valves. The valve body is split into two halves along the stem centerline, allowing the PTFE/PFA liner and encapsulated disc to be installed, then the two halves are bolted together. Advantages:

• Allows transfer-molded PFA liner with seamless internal surface — no joints, no seams, no leak paths
• Simplifies disc encapsulation manufacturing — disc and stem can be assembled into one body half before joining
• Enables full stem sealing through a PTFE-enveloped stem seal design — the stem is isolated from the fluid
• Allows field disassembly for inspection or seat replacement (in some designs)

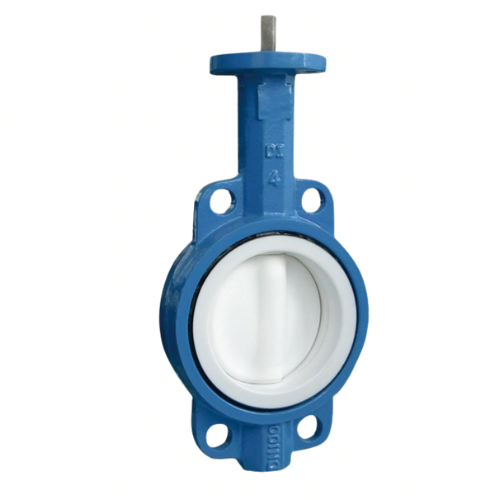

One-Piece Body Design

Less common for fully lined valves. In a one-piece body, the liner is mechanically inserted (not transfer-molded) and locked at the flange faces. Advantages include simpler body casting, but the liner is not chemically bonded and may be more susceptible to vacuum collapse or permeation behind the liner.

Key Design Features

Stem Sealing System

Stem leakage is a critical failure mode in chemical service. PTFE lined butterfly valves employ multiple levels of stem protection:

• Primary seal: PTFE-enveloped stem seal or PTFE bellows seal — separates the stem from the process fluid at the shaft penetration through the body liner.
• Secondary seal: PTFE chevron packing rings or PTFE V-rings in the stuffing box — adjustable from outside the valve without disassembly.
• Tertiary backup: Live-loaded packing with Belleville spring washers compensates for PTFE wear over time, maintaining seal without manual adjustment.
• Anti-blowout stem: The stem is retained by a shoulder or retaining ring that prevents ejection under pressure, independent of the packing system.

Anti-Static Design

PTFE is an excellent electrical insulator. In services where flammable fluids are present, static electricity can build up on the PTFE surfaces. PTFE lined butterfly valves intended for flammable service incorporate an anti-static design:

• Conductive PTFE  stem bushing — provides a controlled electrical path from disc to body
• Bonding strap or grounding connection on the valve body — ensures the valve body is at earth potential
• This is typically specified for ATEX or IECEx hazardous area applications

Applications by Industry

Chemical Processing

PTFE lined butterfly valves are used wherever aggressive chemicals are manufactured, stored, or transported:

• Acid production and storage: Sulfuric acid , hydrochloric acid, nitric acid, phosphoric acid, hydrofluoric acid (≤ 60%, ambient temperature), chromic acid
• Alkali handling: Sodium hydroxide  0–50%, potassium hydroxide, ammonium hydroxide
• Solvent processes: Acetone, toluene, xylene, MEK, MIBK, chlorinated solvents
• Chlor-alkali plants: Chlorine gas, sodium hypochlorite, hydrochloric acid synthesis
• Reactor isolation, batch charging, product discharge, scrubber loops

Pharmaceutical & Fine Chemicals

• Ultra-pure water  and water for injection  systems — PTFE has minimal leachables
• API  synthesis — PTFE will not react with or contaminate sensitive compounds
• Solvent recovery and distillation systems
• CIP  and SIP  compatible

Petrochemical & Refining

• Sour water stripper overhead and bottoms
• Amine treating unit  — rich and lean amine solutions
• Sulfur recovery unit  — tail gas, quench water
• Alkylation unit — sulfuric acid and hydrofluoric acid alkylation
• Acid gas removal — solvents such as MDEA, DEA, Sulfinol

Steel Pickling & Metal Finishing

• Hydrochloric acid pickling bath recirculation and isolation
• Sulfuric acid pickling lines
• Mixed acid  stainless steel pickling
• Rinse water isolation and pH adjustment chemical feed

Water & Wastewater Treatment

While most water/wastewater applications use rubber-seated valves, PTFE lined valves are specified where treatment chemicals are handled:

• Sodium hypochlorite dosing — highly aggressive to standard rubber and metals
• Ferric chloride and polyaluminum chloride  coagulation chemical feed
• Sodium bisulfite dechlorination
• Ozone injection — PTFE is ozone-resistant; most elastomers are not
• Acid and caustic for pH adjustment

Semiconductor & Electronics

• Ultra-high-purity  water loops — PFA lined valves preferred for minimum extractables
• Chemical mechanical planarization slurry — abrasive and chemically aggressive
• Wet etch chemical distribution — HF, BOE, H₂SO₄/H₂O₂
• Bulk chemical delivery — drum and tote dispensing stations

Chemical Resistance Quick Reference

Ratings: ★★★★★ = Excellent (long-term service), ★★★★☆ = Good (suitable), ★★★☆☆ = Fair (short-term or diluted only), ★★☆☆☆ = Poor (not recommended), ★☆☆☆☆ = Severe attack (do not use). Always verify with material compatibility data for your specific concentration, temperature, and impurities.

Limitations of PTFE Lined Butterfly Valves

While PTFE lined butterfly valves are the solution for most corrosive chemical applications, they have inherent limitations that engineers must consider:

1. Permeation

PTFE is permeable to small molecules. Over time, process fluid can diffuse through the PTFE lining and accumulate behind the liner, potentially causing liner collapse when the system is depressurized. PFA has significantly lower permeation than PTFE and is preferred where permeation is a concern. For vacuum service or rapid pressure cycling, a vacuum-resistant liner design with mechanical anchoring is essential.

2. Temperature De-rating

All fluoropolymers lose mechanical strength as temperature increases. While PTFE's melting point is 327°C, its practical pressure-retaining capability diminishes above 200°C. At 200°C, the pressure rating may be de-rated to 50–70% of the cold working pressure. Consult the manufacturer's pressure-temperature rating table for your specific size and lining material.

3. Cold Flow / Creep

PTFE exhibits cold flow under sustained compressive load. In a butterfly valve, this means the PTFE seat can slowly deform under continuous pressure from the disc, eventually reducing sealing performance. PFA and modified PTFE grades (with fillers such as glass fiber or carbon) have improved creep resistance.

4. Higher Torque

PTFE has a higher coefficient of friction than rubber and is stiffer. This means PTFE lined butterfly valves require higher actuator torque — approximately 1.5–2× the torque of an equivalent rubber-seated valve. Actuator sizing must account for this.

5. Not for Abrasive Slurries

While PTFE has reasonable abrasion resistance for a polymer, it is not suitable for highly abrasive slurries (mining, mineral processing) where hard particles will score the soft PTFE seat and disc surface, degrading sealing performance rapidly. For abrasive service, ceramic-lined or hardened metal-seated valves are more appropriate.

Selection Checklist

When specifying a PTFE lined butterfly valve, provide the following information to ensure correct selection:

1. Process fluid: Chemical name, concentration, any impurities
2. Operating temperature: Normal and maximum  temperature
3. Operating pressure: Normal and maximum differential pressure
4. Flow direction: Uni-directional or bi-directional
5. Leakage requirement: On/off isolation or control
6. Lining material preference: PTFE or PFA — consider permeation, temperature, and cost
7. Body design: Split body or one-piece
8. End connection: Double flange, lug, or wafer — wafer is less common for PTFE lined due to potential for liner damage during installation
9. Actuation: Manual (lever or gearbox), pneumatic, or electric
10. Anti-static: Required for flammable fluids ?
11. Vacuum service: Is the valve subject to vacuum conditions at any point?

Why Choose Laux Valve for PTFE Lined Butterfly Valves?

• Full PTFE/PFA lining: Transfer-molded PFA body liner with PTFE or PFA encapsulated disc — seamless, permeation-resistant, fully bonded
• Split body design: Two-piece bolted construction enables transfer-molded PFA liner with no internal seams or joints
• Multiple seat options: Standard PTFE-to-PTFE, energized PTFE with EPDM/Viton backing, or double-piston effect for critical zero-leakage applications
• Complete stem sealing: PTFE-enveloped stem seal, PTFE chevron packing, and live-loaded Belleville springs — triple protection against stem leakage
• Integral flange gasket: The liner extends over the flange face, eliminating separate gaskets and associated compatibility concerns
• Full material traceability: EN 10204 3.1 certificates for all pressure-containing components
• 100% tested: Shell hydrostatic, seat leakage (high and low pressure), and spark test on PTFE lining integrity for every valve
• 15+ years export experience: PTFE lined butterfly valves supplied to chemical and pharmaceutical projects in 45+ countries
• OEM/ODM support: Custom configurations, private labeling, and project-specific documentation packages

Frequently Asked Questions

Q1: What is the difference between a rubber-seated butterfly valve and a PTFE lined butterfly valve?

A rubber-seated valve has a rubber seat bonded to the body and a metal disc (usually coated). The fluid contacts the rubber and the disc coating. A PTFE lined valve has both the body interior and the disc fully encapsulated by PTFE/PFA, so the fluid contacts only fluoropolymer. PTFE lined valves handle aggressive chemicals that would destroy any rubber within hours.

Q2: Can a PTFE lined butterfly valve achieve bubble-tight shut-off?

Yes, but it depends on the seat design. Standard PTFE-to-PTFE seats typically achieve Class IV or Class V (not bubble-tight). For bubble-tight (Class VI), an energized PTFE seat with an elastomeric backing or a double-piston effect seat design is required. These designs use the elastomer's resilience (behind the PTFE, not in contact with the fluid) to achieve zero leakage at low pressure.

Q3: What chemicals can PTFE NOT handle?

PTFE is attacked by only a few substances: molten alkali metals (sodium, potassium, lithium — which strip fluorine from the polymer chain), elemental fluorine gas at elevated temperature and pressure, and chlorine trifluoride (ClF₃). For all other chemicals, PTFE is resistant at least up to 200°C. No solvent, acid, or base will dissolve PTFE.

Q4: Why are PTFE lined butterfly valves typically split-body design?

The split-body design allows the PFA body liner to be transfer-molded directly into each body half, creating a seamless, fully bonded lining. Without the split, the liner would need to be mechanically inserted — losing the chemical bond and creating potential leak paths at the liner-to-body interface. The two body halves, once bolted together, form a 360° continuous PTFE-lined interior with no seams.

Q6: What happens if the PTFE liner is damaged?

If the PTFE/PFA liner is scratched, punctured, or worn through, the underlying metal body becomes exposed to the corrosive process fluid. In most cases, this will lead to rapid body corrosion and valve failure. The 3–5 mm liner thickness provides significant protection, but sharp objects inside the pipe (weld slag, tools, broken instrument elements) can cut the liner. Always flush and inspect piping before valve installation. Minor liner damage can sometimes be repaired by specialist PTFE welding — contact the manufacturer for assessment.

Q7: Can PTFE lined butterfly valves be used for steam service?

Yes, within temperature limits. PTFE/PFA lined butterfly valves are suitable for saturated steam up to approximately 180–200°C (depending on pressure and lining material). Verify the specific manufacturer's steam service rating. For superheated steam above 200°C, metal-seated butterfly valves are typically required. Note that rapid thermal cycling can stress the PTFE liner due to the difference in thermal expansion between PTFE and the metal body.

Q8: Are PTFE lined butterfly valves suitable for vacuum service?

Standard PTFE lined butterfly valves may not be suitable for full vacuum because the negative pressure can pull the liner away from the body wall (liner collapse). For vacuum service, a vacuum-rated design with mechanical liner anchoring — grooves, dovetails, or a vacuum collar — is required. Always specify "vacuum service" when ordering.

Q9: What is the typical lead time?

Standard sizes DN50–DN300: 2–6 weeks depending on specification. Custom sizes, PFA liners, or special seat configurations: 6–10 weeks. Contact our sales team for current production schedules.
