Why Choose PTFE Lined Butterfly Valves for Chemical Processing

In chemical processing plants, selecting the right valve is critical to operational safety, equipment longevity, and process efficiency. Among the many valve types available, the PTFE lined butterfly valve has emerged as a preferred solution for handling corrosive chemicals, high-purity fluids, and demanding temperature conditions.

This comprehensive guide explains why PTFE lined butterfly valves are essential for chemical processing, how they compare to other lining materials, and what to consider when selecting one for your application.

What Is a PTFE Lined Butterfly Valve?

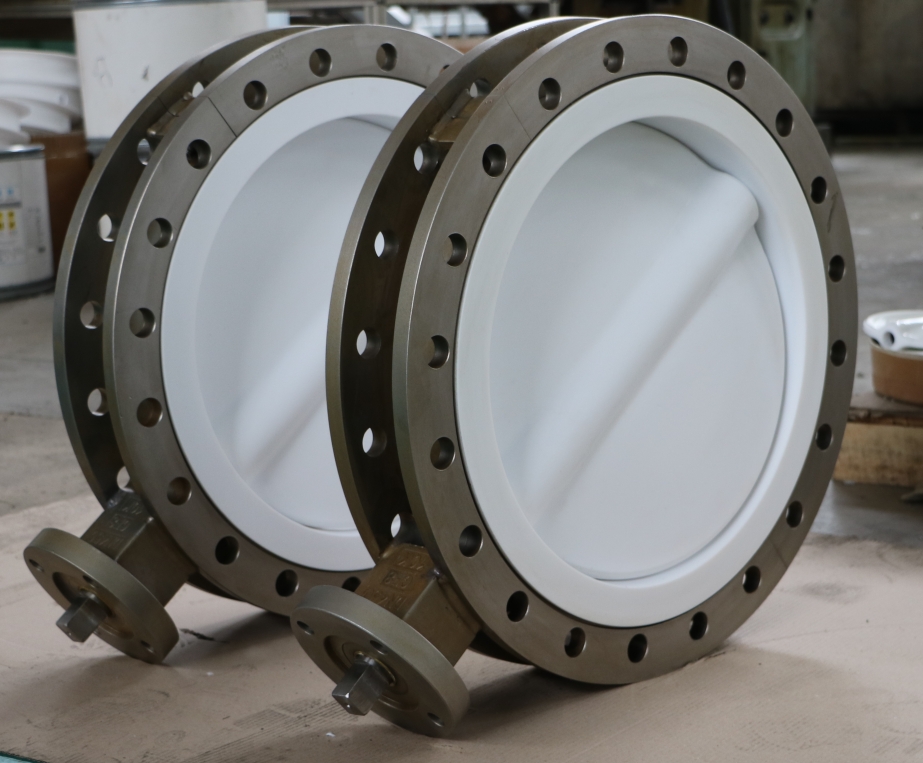

A PTFE lined butterfly valve is a quarter-turn valve that uses a corrosion-resistant polytetrafluoroethylene (PTFE) lining to protect the metal valve body and disc from chemical attack. Unlike standard butterfly valves with rubber or elastomeric seats, the PTFE lining creates an inert barrier between the metal components and the process fluid.

These valves typically feature a split-body or U-type design that allows the lining to be fully encapsulated over the wetted surfaces, ensuring complete protection. The lining extends beyond the sealing faces to create a gasket-like seal at the flange connections, eliminating the need for separate flange gaskets in many installations.

Why Chemical Processing Plants Need PTFE Lined Valves

Chemical processing environments present unique challenges that standard butterfly valves cannot handle:

1. Superior Chemical Resistance

PTFE is chemically inert and resists attack from nearly all industrial chemicals, including:


• Strong acids: Sulfuric acid, hydrochloric acid, nitric acid, hydrofluoric acid


• Caustic solutions: Sodium hydroxide, potassium hydroxide


• Organic solvents: Acetone, benzene, toluene, xylene


• Halogens: Chlorine, bromine, iodine


• Oxidizing agents: Hydrogen peroxide, sodium hypochlorite

Standard EPDM or NBR rubber linings would degrade rapidly when exposed to these chemicals, leading to valve failure, leaks, and costly downtime.

2. Wide Temperature Range

PTFE lined butterfly valves maintain their integrity across a wide temperature spectrum:

3. Low Friction and Non-Stick Surface

PTFE has the lowest coefficient of friction of any solid material. This provides two significant advantages:


• Reduced operating torque — Lower actuation force requirements, allowing smaller actuators


• Non-stick properties — Prevents buildup of sticky process fluids on the disc and body surfaces

4. Purity and Contamination Prevention

PTFE is non-toxic, non-contaminating, and does not leach chemicals into the process fluid. This makes PTFE lined valves ideal for:

PTFE vs FEP vs PFA: Which Lining Material Is Right for You?

The three primary fluoropolymer lining materials offer different performance characteristics:

PTFE Lining (Standard)

PTFE is the most widely used lining material for chemical butterfly valves. It offers excellent chemical resistance across the broadest range of chemicals and good temperature resistance up to 200°C. PTFE linings are typically white and have a slight permeability compared to PFA.

FEP Lining

FEP has a smoother surface finish and lower gas permeability than standard PTFE. It is preferred for applications requiring higher purity levels, such as pharmaceutical and semiconductor processing. FEP can be fused to the valve body more effectively, reducing the risk of lining separation.

PFA Lining

PFA offers the highest temperature resistance (up to 260°C) and the best mechanical properties among fluoropolymer linings. It has the lowest permeability and can be molded into complex shapes. PFA lined valves are the premium choice for the most demanding chemical services.

PTFE Lined vs Rubber Lined Butterfly Valves

Understanding when to choose PTFE lined over rubber lined butterfly valves is essential for proper valve selection:

Key Considerations When Selecting a PTFE Lined Butterfly Valve

1. Lining Thickness and Quality

The thickness of the PTFE lining directly affects the valve's service life and chemical resistance. Quality PTFE lined valves should have a minimum lining thickness of 3mm on the body and 2mm on the disc for standard chemical services.

2. Body Design

PTFE lined butterfly valves are available in wafer type and lug type designs. Wafer type valves are more economical and suitable for most chemical processing applications. Lug type valves allow dead-end service, enabling downstream maintenance without system shutdown.

3. Face-to-Face Dimensions

Standard PTFE lined butterfly valves typically follow ISO 5752 (short pattern) or API 609 (Table 1 or Table 2) face-to-face dimensions. Ensure the selected valve matches your piping system specifications.

4. Actuation Requirements

Due to their low friction, PTFE lined valves typically require lower actuation torque than rubber lined valves. This allows for smaller, more cost-effective actuators. Options include:


• Lever handle — For manual operation in accessible locations


• Gearbox — For larger valves or high-cycle applications


• Pneumatic actuator — For automated process control


• Electric actuator — For precise positioning and remote operation

5. Certifications and Standards

When selecting PTFE lined butterfly valves for chemical processing, look for compliance with:


• ISO 9001 — Quality management system


• API 609 — Butterfly valve design standard


• EN 12266-1 — Valve testing standard


• FDA compliance — For food and pharmaceutical applications


• ATEX — For potentially explosive atmospheres

Common Applications of PTFE Lined Butterfly Valves

PTFE lined butterfly valves are widely used across multiple industries:


• Chemical Processing Plants: Acid transfer, solvent handling, reactor feed systems


• Petrochemical Refineries: Catalyst handling, additive injection, sample points


• Pharmaceutical Manufacturing: API production, solvent recovery, clean-in-place systems


• Water Treatment: Chemical dosing, disinfection systems, pH control


• Food and Beverage: CIP systems, ingredient handling, sanitation lines


• Fertilizer Production: Acid handling, ammonia processing, nutrient blending

Why Choose Laux Valve for Your PTFE Lined Butterfly Valves?

With over 13 years of experience in butterfly valve manufacturing, Laux Valve offers high-quality PTFE lined butterfly valves designed for demanding chemical processing applications:


• Full lining range: PTFE, FEP, and PFA lining options available


• Complete size range: DN50 to DN600 (2" to 24")


• Multiple body styles: Wafer, lug, and U-type split body designs


• Quality certified: ISO 9001, CE, and WRAS approved


• Custom solutions: OEM and custom lining specifications available


• Factory direct pricing: Competitive pricing with short lead times

Frequently Asked Questions
